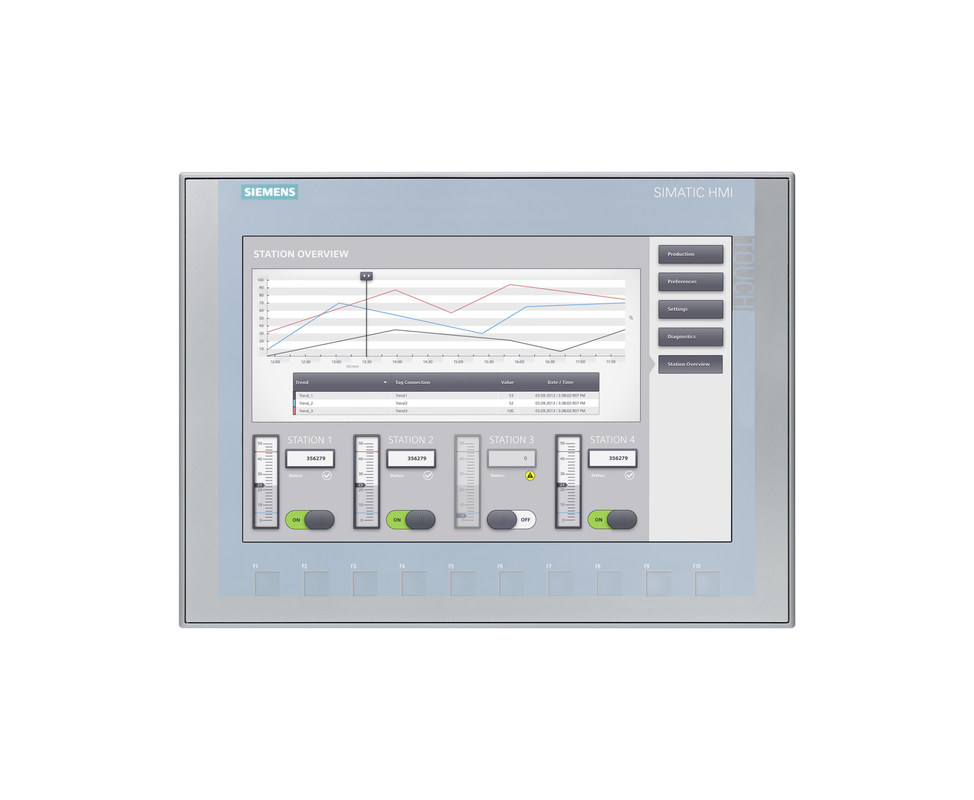

SIMATIC HMI KTP1200 Basic DP – 6AV2123-2MA03-0AX0
Product Overview
The SIMATIC HMI KTP1200 Basic DP (6AV2123-2MA03-0AX0) is a powerful 12-inch operator panel designed for reliable monitoring and control of industrial automation systems. Developed by Siemens, this Basic Panel supports PROFIBUS DP communication, making it ideal for integration with SIMATIC S7 PLC systems.
It combines touchscreen and keypad operation for flexible and user-friendly control in machine-level applications.
Key Features
-
12-inch widescreen TFT display
-
Touchscreen + function keys (KTP series)
-
PROFIBUS DP communication interface
-
Compatible with SIMATIC S7-300 / S7-400 PLCs
-
Configuration via TIA Portal
-
Robust industrial design with IP65 front protection
-
Compact panel mounting design
Technical Specifications
| Specification | Details |
|---|---|
| Model | 6AV2123-2MA03-0AX0 |
| Series | SIMATIC HMI KTP1200 Basic DP |
| Display Size | 12-inch TFT |
| Resolution | 1280 × 800 |
| Communication | PROFIBUS DP |
| Input Type | Touch + Keypad |
| Configuration Software | TIA Portal |
| Protection Class | IP65 (Front) |
| Supply Voltage | 24V DC |
| Mounting | Panel Mount |
Applications
-
Machine control panels
-
Packaging and processing machines
-
Production line monitoring
-
Conveyor and material handling systems
-
Factory automation systems using PROFIBUS
Benefits
-
Clear visualization of process data
-
Reliable PROFIBUS communication with SIMATIC PLCs
-
Easy configuration and engineering in TIA Portal
-
Durable design for industrial environments
-
User-friendly interface for operators
