| Alternative Part Number: | 6020112 |
| Manufacturer: | Sick |
| Pricing Unit: | Each |
| Weight: | 0.021 kg (each) |
| Tariff code: | 85365019 |
| Generic code: | NET |
| ETIM Group: | Sensors |
| ETIM Class: | Inductive proximity switch |
| Cascadable: | – |
| Compression-resistant: | – |
| Construction type housing: | Special construction |
| Diameter sensor: | 8mm |
| Height of sensor: | – |
| Length of sensor: | – |
| Material housing: | Metal |
| Max. output current at protected output: | 200mA |
| Mechanical mounting condition for sensor: | Concise |
| Number of contact energized outputs with signalling function: | – |
| Number of protected contact energized outputs: | – |
| Number of protected semiconductor outputs: | – |
| Number of semiconductor outputs with signalling function: | – |
| Rated control supply voltage Us at AC 50HZ: | 10 – 10V |
| Rated control supply voltage Us at AC 60HZ: | – – – |
| Rated control supply voltage Us at DC: | – – – |
| Suitable for safety functions: | – |
| Supply voltage: | 10 – 30V |
| Switching distance: | – |
| Switching frequency: | 5000Hz |
| Type of electric connection: | Connector M8 |
| Type of switch function: | Normally open contact |
| Type of switching output: | PNP |
| Voltage type: | DC |
| Width sensor: | – |
| With monitoring function downstream switching devices: | – |
Manufacturer: Sick

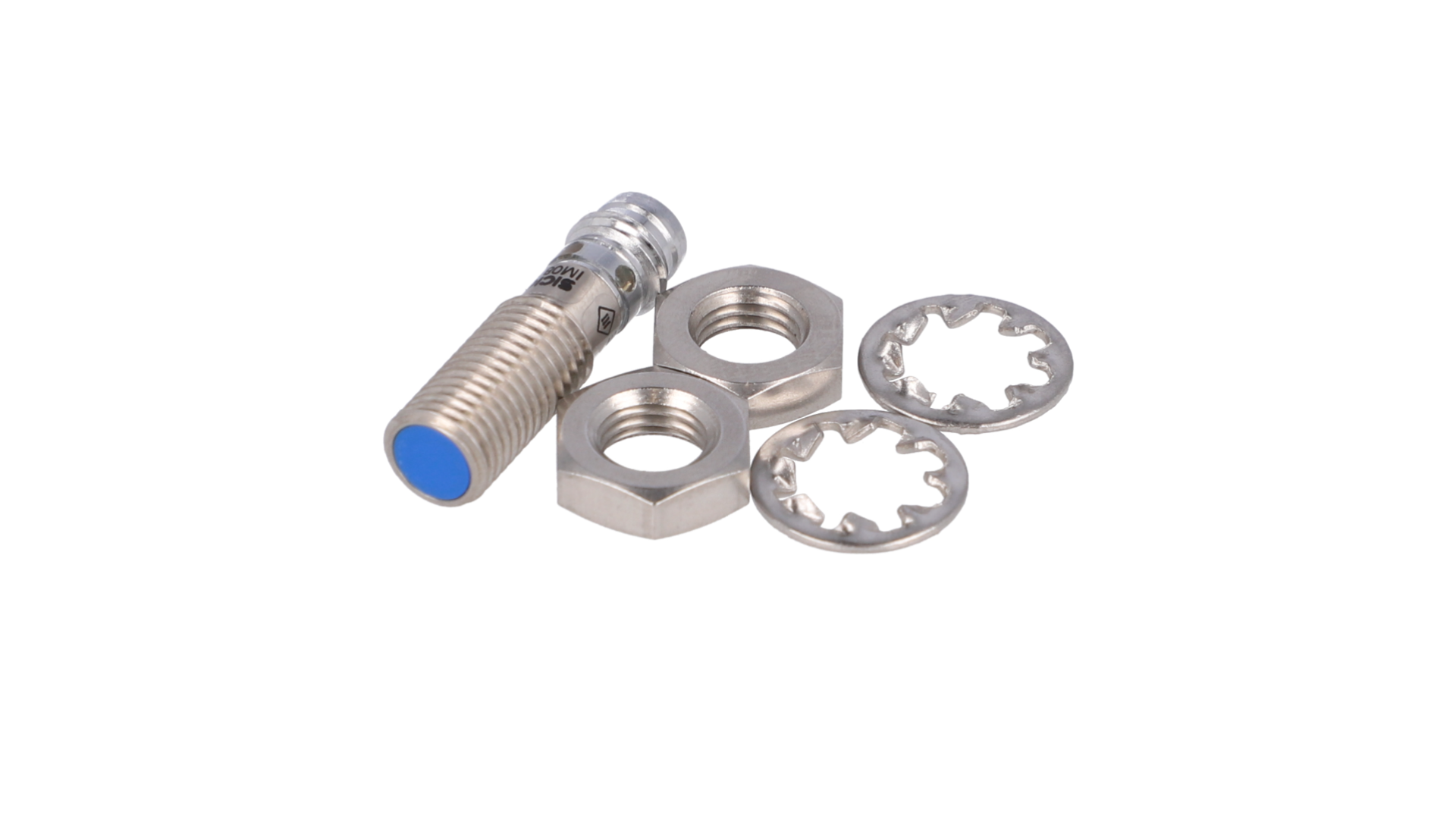

INDUCTIVE SENSOR, M8, 1.5MM RANGE FLUSH, PNP NO, M8 3 PIN CONNECTOR
| Sensing range Sn | 1.5 mm |
| Installation type | Flush |
| Housing | Short-body |
| Electrical wiring | DC 3-wire |
| Switching output | PNP |
| Output function | NO |
| Connection type | Connector M8, 3-pin |
