Description

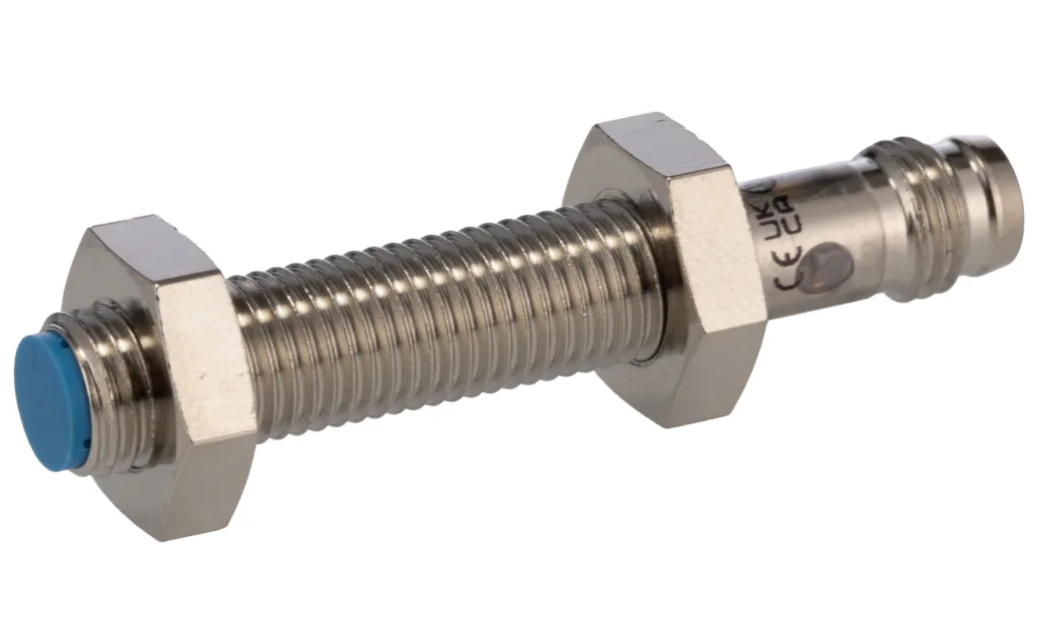

The SICK IME08-1B5PSZT0K is a highly reliable inductive proximity switch from SICK’s IME series, engineered for robust and precise detection of metal targets in industrial control and automation systems. With an effective sensing distance of 1.5 mm (Sn), this sensor excels in applications where space is limited and precise detection is essential — such as part presence sensing, position feedback, and machine safety interlocks.

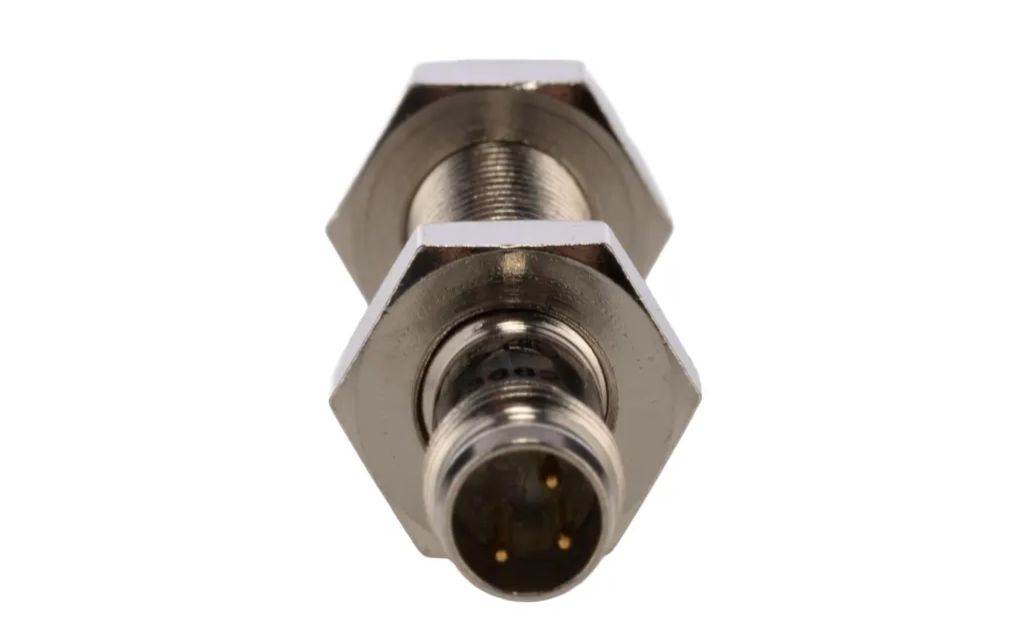

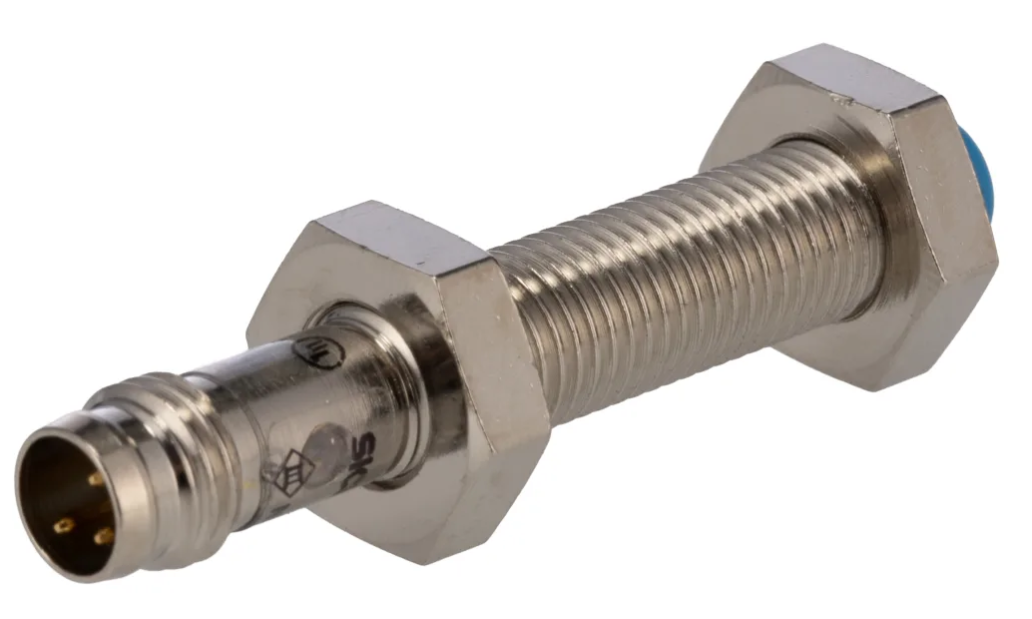

Its M8 × 1 threaded, short-body cylindrical housing is made of nickel-plated brass, providing mechanical strength and corrosion resistance. The sensor uses a PNP normally open (NO) output with 3-wire DC wiring and an M8 3-pin connector for quick, standardized integration. The built-in ASIC circuitry ensures precise switching behavior and excellent repeatability, while protections against short circuits, reverse polarity, and power-up pulses enhance durability and longevity. Rated IP67, it is protected against dust and temporary immersion — ideal for harsh industrial environments. The typical operating temperature range is -25 °C to +75 °C, supporting broad deployment across diverse automation applications.

📊 Specifications Table
