Description

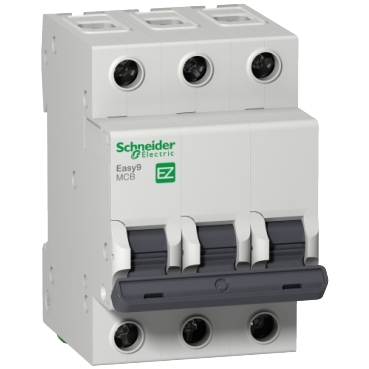

The Schneider Easy9 range of MCBs provides essential circuit protection and isolation for electrical installations such as homes, apartments, shops, and light commercial systems. Built to conform with the IEC/EN 60898‑1 safety standard, these breakers safeguard circuits and cables against overloads and short faults with reliable thermal‑magnetic tripping technology.
Easy9 MCBs are available in single‑pole (1P), two‑pole (2P), three‑pole (3P) and four‑pole (4P) versions with current ratings from around 6 A up to about 63 A (varies by model). They typically feature a C‑curve trip characteristic, which is suitable for general use with moderate inrush currents (e.g., from motors or fluorescent lighting).
These breakers mount easily on standard DIN rails and are compact (usually 2–4 modules wide at 9 mm per module), enabling neat wiring layout in distribution boards. Easy9 breakers provide a clear toggle handle to switch and isolate circuits and have a front indication of contact position (ON/OFF). The IP20 rating (inside enclosures) gives basic protection against solid objects.
Overall, the Easy9 MCB series offers cost‑effective, reliable protection for a wide range of low‑voltage distribution applications where basic overcurrent protection and simple installation are required.
📊 Typical Specifications Table
| Specification | Typical Easy9 MCB Details |
|---|---|
| Series / Range | Easy9 MCB (Schneider Electric) |
| Product Type | Miniature Circuit Breaker (MCB) |
| Standard Compliance | IEC/EN 60898‑1 (overcurrent protection) |
| Trip Unit Technology | Thermal‑magnetic |
| Curve Type | C‑curve (general protection) |
| Rated Current (In) | ~6 A to 63 A (model dependent) |
| Poles Available | 1P, 2P, 3P, 4P |
| Rated Operational Voltage (Ue) | ~230 V AC (1P), ~400 V AC (multi‑pole) |
| Breaking Capacity (Icn) | ~6000 A at 230 V AC (1P); 4500 A at 400 V AC typical |
| Rated Insulation Voltage (Ui) | ~500 V AC |
| Rated Impulse Withstand (Uimp) | ~4 kV |
| Mounting Mode | Clip‑on DIN rail (35 mm) |
| Connection Type | Screw terminals |
| Control / Handle Type | Toggle ON/OFF with position indication |
| Protection Functions | Overload & short‑circuit protection |
| Mechanical Durability | ~10 000 cycles typical |
| Electrical Durability | ~4 000 cycles typical |
| Degree of Protection | IP20 (installed in panel) |
| Applications | Residential, commercial, light industrial distribution protection |
🔍 Key Features
-
⚡ Thermal‑magnetic protection: Combines overload and short‑circuit protection in one device.
-
🧱 Modular DIN‑rail installation: Easy to install and organize in consumer units and distribution boards.
-
📏 Compact footprint: 9 mm pitch per pole for space‑efficient panel design.
-
🔄 Multiple poles & ratings: Available in 1P through 4P, and wide current ratings for different circuits.
-
📊 C‑curve characteristic: Suitable for general circuits with moderate inrush.
-
🏠 Standard compliance: Meets international safety standards (IEC/EN 60898‑1).
🧰 Typical Applications
✔ Household distribution boards
✔ Small office power circuits
✔ Light commercial buildings
✔ Control panels for feeders and branch circuits
✔ Protection of lighting and small motors
