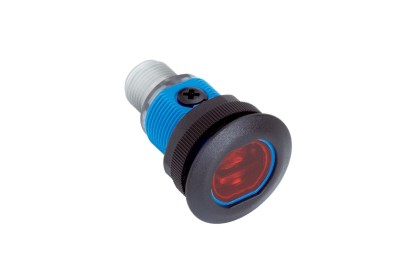

GRTE18S-P2317 | SICK Sensors | Cylindrical photoelectric sensors GR18

SKU: GRTE18S-P2317

Manufacturer : SICK Sensors
Part Number : GRTE18S-P2317
Functional principle : Photoelectric proximity sensor
Functional principle detail : Energetic
Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 3 mm … 115 mm 1)
Sensing range : 5 mm … 100 mm 1)
Type of light : Visible red light
Light source : PinPoint LED 2)
Light spot size (distance) : Ø 8 mm (100 mm)
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Indication :
- LED green : Operating indicator | Static on: power on
- LED yellow : Status of received light beam | Static on: object present | Static off: object not present
Supply voltage U_B : 10 V DC … 30 V DC 1)
Ripple : < 5 V_pp 2)
Current consumption : 30 mA
Switching output : PNP
Switching mode : Light switching
Signal voltage PNP HIGH/LOW : V_S – (≤ 3 V) / approx. 0 V
Output current I_max. : ≤ 100 mA 3)
Response time : < 1,000 µs 4)
Switching frequency : 500 Hz 5)
Connection type : Connector M12, 3-pin
Housing material : Plastic, ABS
Optics material : Plastic, PMMA
Shipping Weight : 1 kg
